| Model |

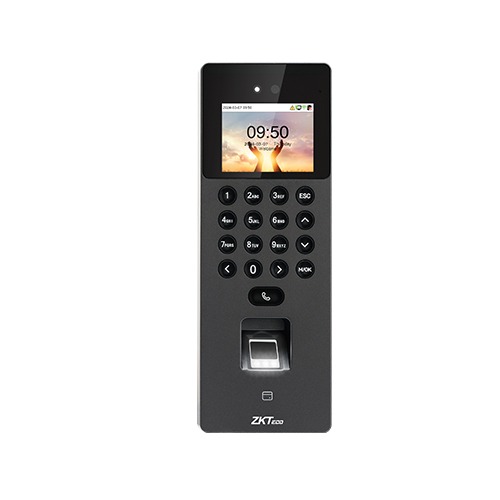

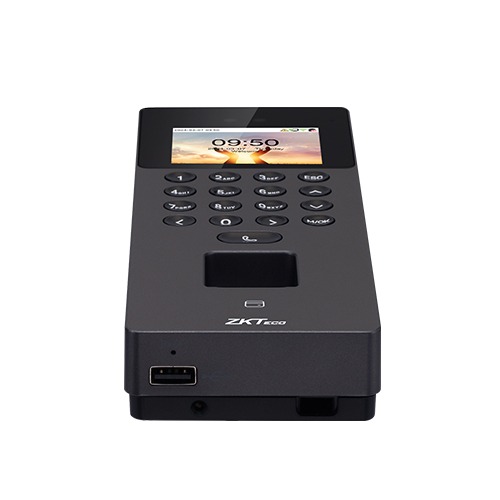

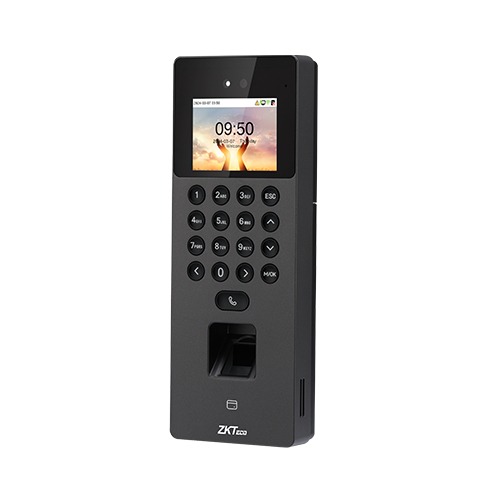

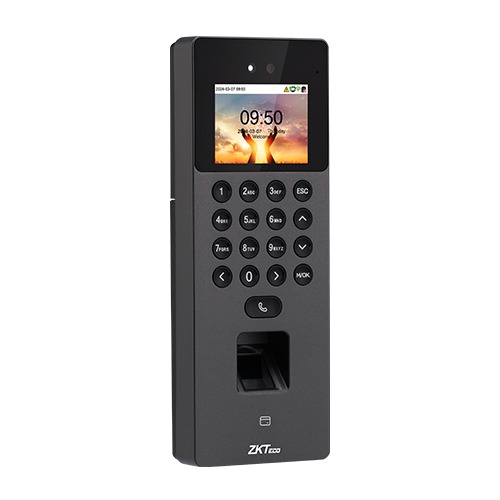

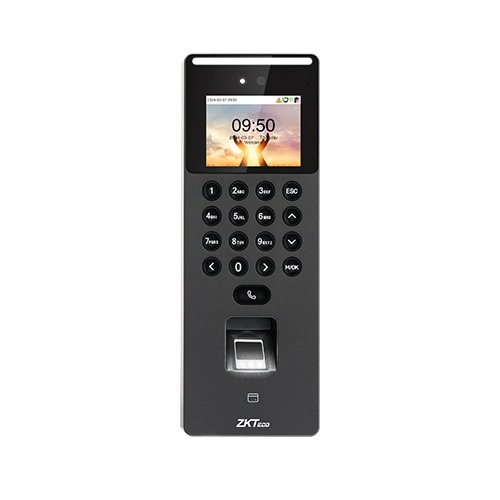

SenseFace 2A |
| Display |
2.4″ TFT Color LCD Screen (320*240) |
| Camera |
WDR Binocular Camera @ 1MP |
| Operating System |
Linux |
| Hardware |
CPU: Dual Core @ 1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8ohm @ 1W
Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32 dB / Impedance: 2.2kΩ)
Supplement Light: Yes
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor |
| Authentication Method |
Fingerprint / Face / Card / Password (Physical Keypad) |
| Fingerprint Template Capacity |
3,000 (1:N) (Standard) |
| Face Templates Capacity |
1,500 (1:N) (Standard) |
| Card Capacity |
3,000 (1:N) (Standard) |
| User Capacity |
3,000 (1:N) (Standard) |
| Transaction Capacity |
150,000 (1:N) |
| Max. User Password Length |
8 Digits |
| Biometric Verification Speed |
Less than 0.5 sec (Fingerprint)
Less than 0.35 sec (Facial Authentication) |
| Touchless Biometric Recognition Distance |
30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) |
FAR ≤ 0.01% (Visible Light Facial Authentication)
FAR ≤ 0.0001% (Fingerprint) |
| False Rejection Rate (FRR) |
FRR ≤ 0.02% (Visible Light Facial Authentication)
FRR ≤ 0.01% (Fingerprint) |
| Biometrics Algorithm |
ZKFace V4.0
ZKFingerprint V13.0 (Standard) / V10.0 (Optional) |
| Card Type |
ID Card @125 kHz (Standard)
IC Card @13.56 MHz (Optional) |
| Communication |
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
USB Type A (USB Drive Only)*1
Electric Lock*1, Door Sensor*1, Exit Button*1 |
| Optional Functions |
IC Card, Wi-Fi, Wireless Doorbell |
| Power Supply |
DC 12V 1.5A |
| Operating Temperature |
-5°C to 45°C |
| Operating Humidity |
20% to 80% RH (Non-condensing) |
| Dimensions |
205.20 mm × 74.19 mm × 33.30 mm (L×W×H) |
| Net Weight |
0.258 Kg |
| Supported Software |
Software: ZKBio CVAccess / ZKBioTime
Mobile App: ZKBio Zlink
Cloud Service: ZKBio Zlink |
| Installation |
Wall-mount (Compatible with Asian Gang Box / Single Gang Box) |
| Certifications |
ISO14001, ISO9001, CE, FCC, RoHS |
